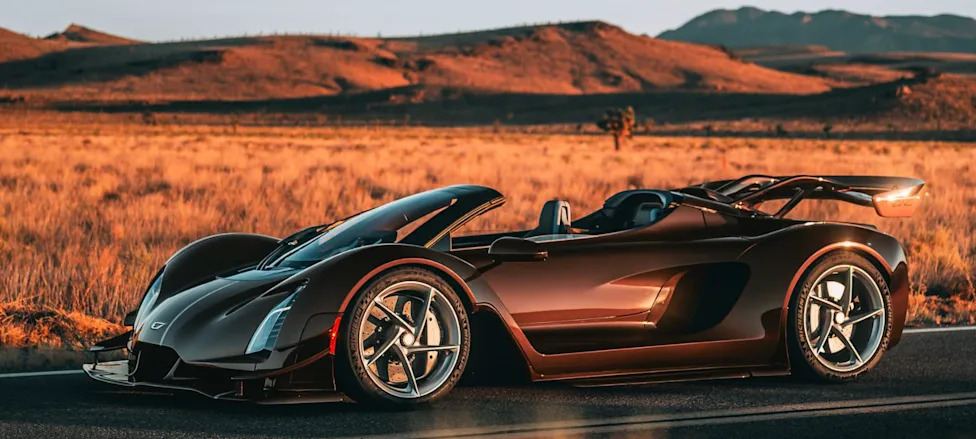

Czinger Printed the Caliper and the Upright as One Piece. Here's What That Actually Buys You.Czinger pulled the top off its 21C for Monterey and called it the Spyder. Thirty cars, $2.75 million each, 1,250 horsepower, and a claimed 3,267 pounds of downforce with the roof stowed in your garage instead of on the car. All of that is fine hypercar theater. None of it is the interesting part.The interesting part is a lump of printed aluminum behind each wheel that Czinger calls BrakeNode, which the company premiered publicly alongside the car. It merges the brake caliper, the suspension upright, and the hydraulic passages that feed the pistons into one part. No caliper bracket. No bolted interface between caliper and knuckle. No flex line hanging off the back of the caliper body.If that sounds like a packaging trick, it isn't. It's an attack on one of the oldest compromises in brake design, and it comes with a repair bill that nobody has talked about yet.Why bolting a caliper to an upright is a problemEvery conventional corner has a load path that goes: pad pushes rotor, caliper body reacts that load, caliper body transfers it through bolts into a bracket or the upright, upright feeds it into the hub carrier and suspension. Each interface in that chain is a spring. Bolted joints deflect. Brackets flex. Caliper bodies themselves spread under clamp load — that's why monobloc calipers replaced two-piece bolted units at the sharp end of the market decades ago.Related ArticlesCalifornia Just Greenlit Driverless Semis From Aurora and Kodiak — But the Fine Print Is BrutalAlex Fiorio, Lancia's Eternal WRC Runner-Up, Dies at 61 After Stomach Cancer BattleAdvertisementAdvertisementThat compliance costs you in two currencies. First, pedal travel: fluid displaced into deflecting hardware is fluid that isn't generating clamp force, so the pedal goes long. Second, and more importantly on a car like this, it costs you modulation resolution. ABS and any brake-by-wire blending system is trying to command a torque and get that torque back. A springy corner turns a crisp pressure command into a mushy, phase-lagged one. On a hybrid with regen blending across three electric motors, that matters more than it does on your Miata.Printing the caliper and the upright as one continuous structure means there is no joint to deflect. The load path from pad backing plate to hub carrier is monolithic. Czinger claims 30 percent more stiffness against its previous setup. That's the real headline, and it's the number I'd want verified independently more than any other.Be skeptical of the 15 percentCzinger says BrakeNode cuts stopping distance by up to 15 percent. Sit with that for a second.On a car with carbon-ceramic rotors measuring 16.1 inches front and 15.3 inches rear, on bespoke rubber, generating over 3,000 pounds of downforce at speed, stopping distance is limited by the tire and the aero — not by whether the caliper can clamp hard enough. Any decent big-brake setup on a hypercar has enough torque authority to lock all four wheels at any speed you like. The brakes aren't the bottleneck; grip is.AdvertisementAdvertisementSo what could plausibly produce a real 15 percent? A few things, and none of them are "more clamping force."Reduced knock-back is one. A stiff, integrated corner keeps the pads closer to the rotor under cornering load, so the first millimeters of pedal travel do work instead of taking up slack. Better thermal stability is another — the fluid staying cooler means the pedal doesn't go long on lap three. And better ABS modulation means the system can hunt closer to peak slip instead of leaving margin for a squishy actuator.Those are legitimate, and cumulatively they could produce a meaningful improvement in a repeated-stop test from high speed. But "up to 15 percent" against an unstated baseline, measured by the manufacturer, in unstated conditions, is a marketing number until somebody straps a fifth wheel to one.The unsprung mass number is smaller and bigger than it looksCzinger claims 1.5 pounds saved per corner, six pounds total, on a car with a 3,571-pound dry weight. That's under two-tenths of one percent of the vehicle. Trivial, right?AdvertisementAdvertisementNot exactly. Unsprung mass is the mass the damper has to control against road inputs, and it's the mass that has to be accelerated vertically every time the tire hits something. The ratio of sprung to unsprung mass sets your wheel-hop behavior and governs how consistently the contact patch stays loaded. A pound removed from the wheel end does more for ride and grip than a pound removed from the seat frame — a lot more.Six pounds still isn't transformative. But it's six pounds removed from the worst place on the car to carry weight, and it came for free as a byproduct of consolidating parts. That's the actual argument for additive manufacturing: not that it makes lighter parts, but that it makes fewer parts, and fewer parts means less material spent on flanges, bosses, and bolt-hole bosses that exist only so two components can meet.The piston choice tells you these people know brakesCzinger fits titanium pistons at the front and aluminum at the rear.Titanium is a poor thermal conductor — considerably worse than steel, dramatically worse than aluminum. In a caliper, that's exactly what you want, because the piston is the thermal bridge between the pad backing plate and your brake fluid. Motorsport has used titanium pistons and titanium pad shims for this reason forever. Czinger claims roughly 15 percent cooler fluid versus stainless pistons.AdvertisementAdvertisementThe rears get aluminum for weight, which conducts heat far better and will run hotter fluid. That's the correct call — the rear axle on a car with this much aero and this much front-motor regen does comparatively little friction work — but it's a genuine engineering tradeoff, made differently at each end. That's a detail you only find on a car developed by people who've actually cooked a set of brakes.Now the part your insurance broker should readRunning the hydraulic passages inside the printed structure eliminates the flexible hose at the caliper. That kills a real failure mode and also kills hose expansion, which is a meaningful source of soft pedal on hard-used cars.It also means the fluid passage is now inside a structural suspension component. Think about what that implies for repair.On a conventional car, a curb strike bends a control arm and maybe tweaks an upright. You replace an upright. Separately, if a brake line chafes, you replace a hose for the price of a nice dinner. On BrakeNode, the caliper, the upright, and the plumbing are the same object. Damage any one function and you're buying all three. There is no rebuild kit for a topology-optimized printed structure with internal channels.Related ArticlesMonterey Car Week 2026 Just Redrew the Collector Car Map, and $636 Million Is the Least Interesting Number in the StoryAn Ohio Seller Wants $5,000 for 14 Geo Metros, Rust and Rare Convertibles IncludedAdvertisementAdvertisementOn a 30-unit car at $2.75 million, that feeds directly into agreed-value policy pricing and total-loss math. Anyone insuring one of these should be asking about corner-assembly cost and lead time before they sign, not after a wheel finds a curb at Laguna Seca.Czinger does claim a serviceability win that's worth acknowledging: pads come out through the top of the structure and rotors tilt out from the side, without disconnecting the caliper. If that works as described, it means pad swaps between track sessions with zero hydraulic disturbance and zero bleeding. That's a genuine, underrated advantage that traditional monoblocs can't match.The qualification questionA printed aluminum part that is simultaneously a structural suspension member, a pressure vessel, and a brake actuator is about as safety-critical as automotive hardware gets. Powder-bed fusion parts carry porosity and anisotropy concerns that conventional forgings don't, which is why aerospace qualification of printed structures leans on hot isostatic pressing, CT inspection, and statistically derived allowables rather than a single proof-pressure test.Czinger says the assembly is pressure-tested well beyond service loads. Pressure proof is not fatigue qualification, and the two failure modes are different. The 21C is homologated in the US, meaning the brake system has to satisfy FMVSS No. 135, which covers stopping performance, fade recovery, and partial-system-failure behavior — so somebody has signed a certification. Whether that framework anticipated a load-bearing printed hydraulic manifold is a separate question, and it's the sort of thing that gets rulemaking attention eventually.AdvertisementAdvertisementWorth noting: sister company Divergent, which supplies the DAPS platform behind all of this, raised a $290 million round explicitly aimed at aerospace and defense production. Those industries have mature frameworks for qualifying printed flight hardware. Automotive is borrowing them, not inventing them.Why you should care at $30,000 instead of $2.75 millionThe 21C has been Czinger's rolling proof of concept since it took the Goodwood hillclimb record for a road-legal production car and reclaimed Laguna Seca in 2024. Divergent's actual business is selling this manufacturing approach to other people.Which means integrated corners are coming down the price ladder eventually — and the consumer question isn't whether they're faster. It's whether "one part instead of eleven" is a manufacturing win that quietly becomes an ownership loss.We've already watched this movie with megacastings, where a rear-end tap that used to mean replacing three stamped rails now means a structural repair debate and, in a lot of cases, a total loss. A corner assembly that fuses caliper, upright, and plumbing is the same logic applied to the part of the car most likely to hit something.AdvertisementAdvertisementFor thirty owners with a Czinger, that's noise. If the same thinking reaches a $40,000 crossover in ten years, it's the whole story.Images Via: Czinger
