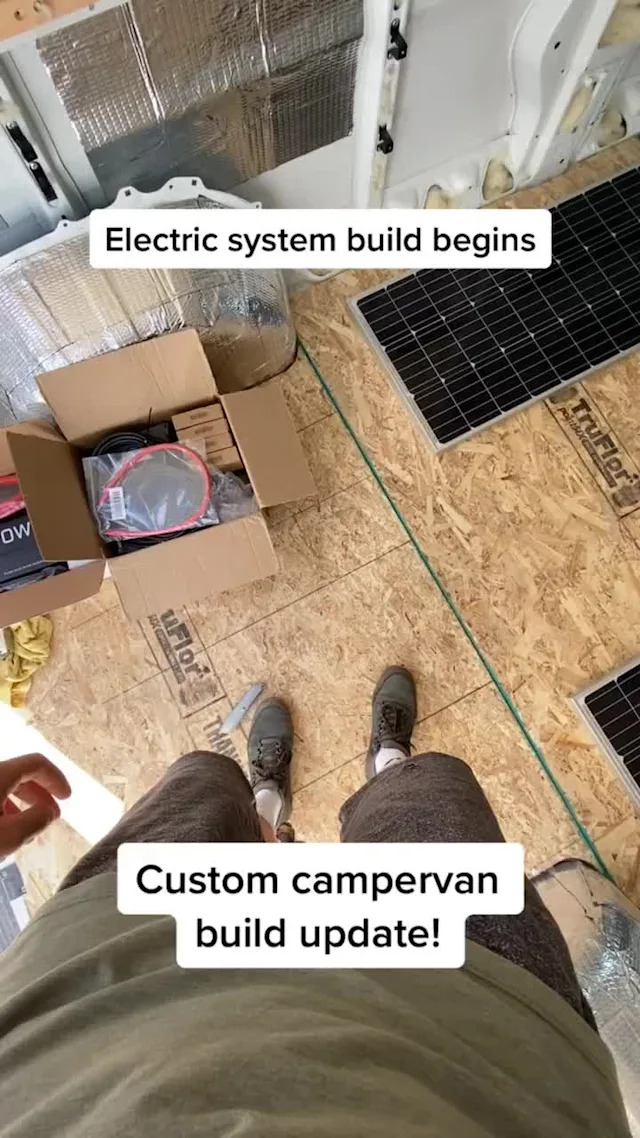

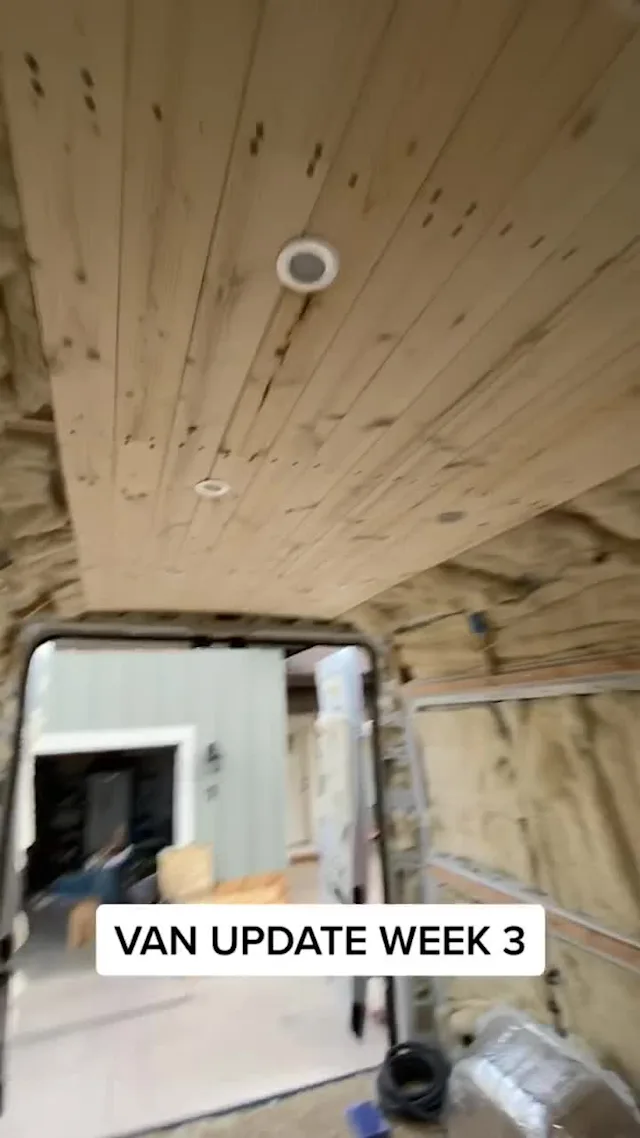

Building a custom campervan means learning to live in a construction zone. You are constantly balancing the raw physical labor with the massive technical blueprint required to make a tiny space livable. My goal with this new project vehicle is simple. I want a self-sustaining mobile studio that can power my cameras, drone hubs, and editing deck anywhere in the backcountry.The strategy started today. I am finally diving into the heavy-duty electrical components.The setup is a massive logistical puzzle. Every single wire, breaker, and connection must be carefully planned before the walls get closed up.The Pre-Floor Mockup MethodThe interior frame is already heavily insulated. The subfloor is completely laid down, providing a solid foundation to start visualizing the heavy hardware. Instead of guessing how the roof layout would look, I chose to map it out on the floor first.AdvertisementAdvertisementThe process is practical.Layout the Solar Grid: I placed four large solar panels directly on the plywood to gauge the footprint.Position the Air System: I dropped the central AC fan unit right between the panels to check the clearance.Trace the Wiring Lines: I used the layout to trace exactly where the heavy-duty wires will run along the roof ribs.The result? Incredible.The mock-up gave me an immediate visual of the roof real estate. Seeing the gear spaced out on the floor makes it much easier to plan the custom roof rack before lifting a single heavy panel onto the top of the van.Unboxing the Off-Grid MuscleThe heavy power gear arrived in bulk this morning. To turn raw solar energy into usable power for my electronic gear, I am leaning on a massive component stack. I unboxed the new 2000W pure sine wave inverter alongside the main solar charge controller.AdvertisementAdvertisementThe wiring is going to be a grueling process. It takes an intense amount of focus to route heavy gauge cables safely through a metal vehicle frame, but getting this foundation right is non-negotiable. This electrical grid is what keeps my creative career moving when I am completely off the grid.If you are starting your own custom van conversion, do not rush the planning phase. Take the time to layout your components, measure the connections, and double-check your specs. The effort you put into the blueprint saves you massive headaches down the road.
