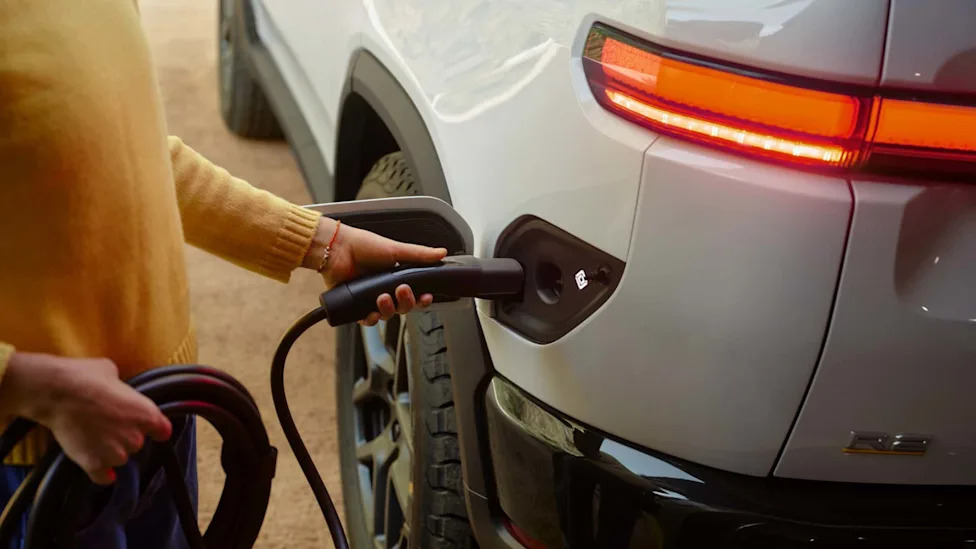

Rivian R2 chargingSince Rivian stuck with 400 volts to keep costs down, the R2's high-amperage charging can be too much for some older adapters.What happens if you use a subpar charging adapter to plug your Rivian R2 into a CCS charge station? Just ask, journalist Tom Moloughney, host of the State of Charge YouTube channel, who tested out the R2's charging capabilities using an older Tesla adapter. It melted one of the pins. This likely won't be an isolated incident, as it wasn't a malfunction or error on the car's fault. It's simply a nature of the R2's design and limitations of older NACS-to-CCS adapters. So how did that happen and why can't older adapters handle the R2? The answer lies in the important difference between voltage and amperage. For Rivian to maintain the brilliance of its R1 models in the much cheaper R2, it had to make some cost compromises. One such compromise was sticking with the same 400-volt battery architecture as the R1, rather than the 800-volt systems that so many of its competitors are now using. While that's fine, it does mean that Rivian had to increase the R2's amperage draw while charging to maintain a similar speed. Moloughney says that the older adapter wasn't up to the task of handling the R2's extra amperage, which is why it melted. However, he does say that more modern adapters are more capable of handling higher amperage, and therefore won't melt. Which is important for customers to know now that the R2 has a native NACS port. While the NACS port is handy for Tesla Superchargers, owners will need an adapter to charge at many Electrify America, ChargePoint, and other CCS charging stations. Rivian customers aren't the only ones who need to be mindful of this, since the R2 isn't the only EV that can draw up to 600 amps. Some BMW, Polestar, and even Tesla models can, too. The R2 can draw over 600 amps and for a sustained period, longer than most other cars, though. So if you charge one of those vehicles at a charger that can deliver 600 amps and use an adapter, that adapter needs to be able to handle it. AdvertisementAdvertisementMoloughney notes that some of the adapters that can't handle 600 amps will realize that they're getting too hot and slow the charge down to prevent damage. The old Tesla one just doesn't do that, which is why it finished the charge, melting in the process. That's obviously less than ideal. However, there are plenty of adapters on the market that are capable of handling the R2's amperage draw, including adapters from Tesla and one from Rivian itself. If you're in one of America's many CARB states, Rivian includes the adapter in the car's price (though you may have to add it to your cart yourself). Things melting while connected to your car is bad. So if you have a Rivian R2, or any EV that can draw 600 amps or more, seriously look into the sort of charging adapter you have and make sure it can handle it. Here are some related storiesThe Rivian R2 Can Charge From 10-80% Even Quicker Than Rivian Claims. If You Know This Trick.Tesla NACS And CCS Adapters: Where Are You Supposed To Put Them?
